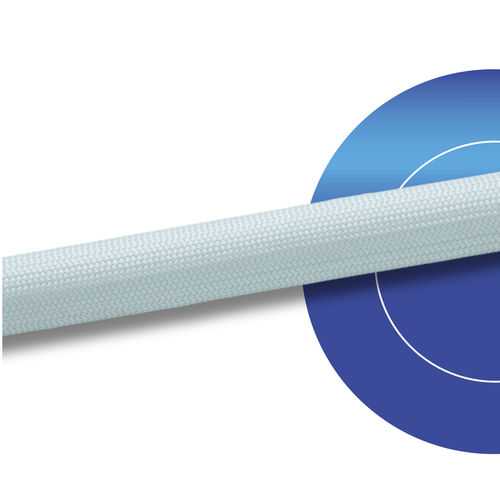

Insulating sleeve SEbraidedfor cablesfiberglass
Add to favorites
Compare this product
Characteristics
- Type
- insulating
- Structure
- braided
- Applications
- for cables
- Material
- fiberglass
- Protection level
- chemical-resistant, watertight
- Other characteristics
- flexible
- Diameter
Min.: 1 mm
(0 in)Max.: 200 mm
(7.9 in)- Temperature
Min.: -60 °C
(-76 °F)Max.: 450 °C
(842 °F)
Description
Characteristics
• Temperature class: C
• Continuous working temperature: from -60°C to +450°C.
Peaks at +550°C (few hours)
• Dielectric strength: from 0.5kV to I.SkV, depends on the thickness
• Flammability: non flamable
• Low mechanical resistance
• Resistant to transformer oils
• Good compatibility with class C impregnation varnishes
• Good behaviour with the soldering iron: no retraction
• Good behaviour with liquid combustibles: no decomposition
• Very flexible
• Non watertight
