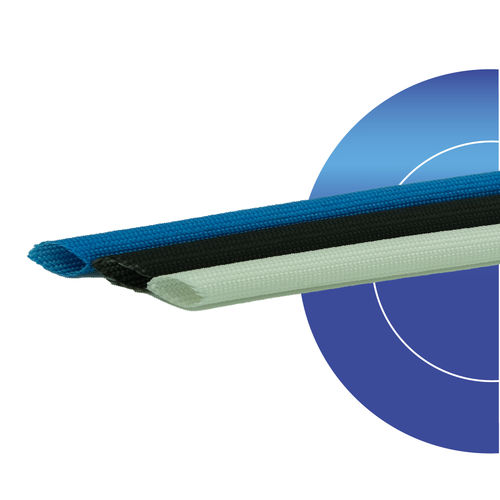

Insulating sleeve 21C, 21F1braidedfor cablesfiberglass
Add to favorites
Compare this product
Characteristics
- Type
- insulating
- Structure
- braided
- Applications
- for cables
- Material
- fiberglass
- Protection level
- chemically resistant, oil-resistant, fire-resistant
- Other characteristics
- flexible, coated
- Diameter
Max.: 70 mm
(2.8 in)Min.: 1 mm
(0 in)- Temperature
Max.: 250 °C
(482 °F)Min.: -30 °C
(-22 °F)
Description
Characteristics
• Continuous working temperature: from - 30°C to + 250°C. Peaks at +320°C
• Dielectric strength: from 0.5kV to 1.5kV, depends on the thickness
• Resistance to flame: non flammable
• Good resistance to thermal schocks
• Resistance to transformer oils
• Good compatibility with class C impregnation varnishes
• Good behaviour with soldering iron, no retraction
• Good behaviour with liquid combustibles, no decomposition
• Very flexible
