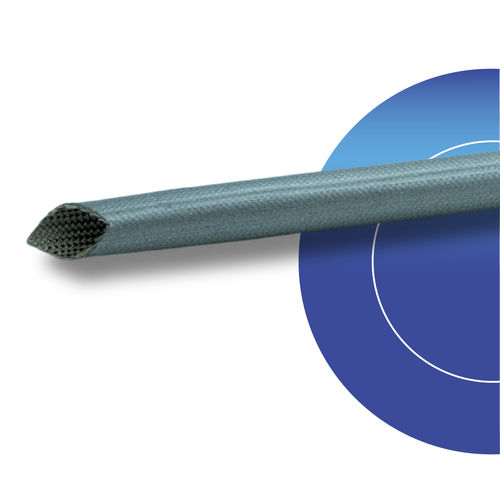

Insulating sleeve SCS-ALUbraidedfor cablesfiberglass
Add to favorites
Compare this product
Characteristics
- Type
- insulating
- Structure
- braided
- Applications
- for cables
- Material
- silicone rubber, aluminized, fiberglass
- Protection level
- halogen-free, abrasion-resistant, self-extinguishing, UV-resistant, oil-resistant, watertight
- Other characteristics
- flexible, coated with rubber
- Diameter
Max.: 45 mm
(1.8 in)Min.: 0.5 mm
(0 in)- Temperature
Max.: 250 °C
(482 °F)Min.: -60 °C
(-76 °F)- Length
Max.: 400 m
(1312'04" )Min.: 30 m
(98'05" )
Description
Characteristics
• Temperature class: C
• Continuous working temperature: from -60°C to +250°C. Peaks at +290°C (few hours)
• Dielectric strength: 1.5 to 4kV
• Flammability: self-extinguishing
• Good mechanical resistance
• Good resistance to UV
• Resistant to transformer oils
• Good compatilibility with same class impregnation varnishes
• Good behaviour with soldering iron
• Good behaviour with liquid combustibles: no decomposition
• Halogen free
• Watertight
• Very flexible
