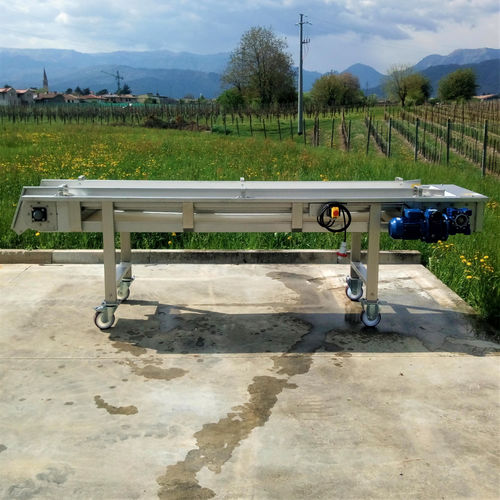

Sorting table for the food industry TCO

for grapes

Our fruit and vegetable sorting table is thoroughly implemented in AISI304 stainless steel with PVC mat for grape selection and removal of product waste. The belt is designed with an open structure and a tubular chassis, which allow easy sanitisation and simple washing of the metalwork and of the mat. The tank for the collection of the waste is also used for rinsing water, while the two adjustable side plates allow to transport the waste, deriving from the sorting phase. The mat speed adjusted by means of the mechanical variable speed drive or an electronic inverter can be adapted according to the customer's needs. Technical Sheet - Length: 2500, 3000, 3500, 4000 mm - Width: 605, 805 mm - Mat type: PVC - Side plates for the transportation of processing waste - Reduction worm drive with 380 V 0.75 kW motor - Mechanical variable speed drive or electronic inverter for speed adjustment - Scraper with gravity counterweight - Support trestle: it can be adjusted in height - Electric panel compliant with C.E. standards - Optional: tape modular
