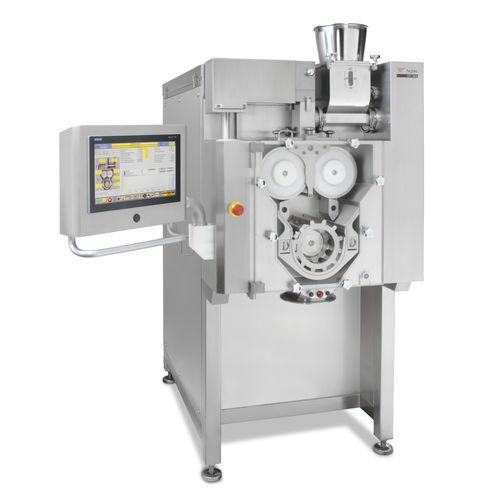

Granulation roller compactor CP 1000

hydrauliclargefor the pharmaceutical industry

The CP 1000 is our top highend and largest roller compactor with a throughput of up to 400kg/h. In not a few cases, the maximum throughput and quality of the granules of the plant depends on the granulating unit Precise & powerful That’s why our top models are equipped with a large diameter granulator rotor of 250mm and with a screen wrap angle of 150° is that very efficient. In order to guarantee a high quality of the finished product (dry granulate), the quality of the pressed strip is also decisive. A constant pressure of the rollers as well as a variable roller gap which is controlled precisely by a hydraulic system guarantees the constant density of the pressed strip. All FAYTEC roller compactors feed the rollers with two efficient metering screw which are arranged horizontally and vertically. In order to avoid powder jamming when feeding the product, the metering screw of our roller compactor always have the same size and can therefore run at the same rotation speed. This feeding concept coupled with a sophisticated air deaeration guarantees a constant powder feed to the press rolls without air inclusions. With our patented high performance four feeding screw desing only provide by FAYTEC AG. This feature in the CP 1000 allow the machine to handle more low desinty pharma powder than normal roller compactor.
