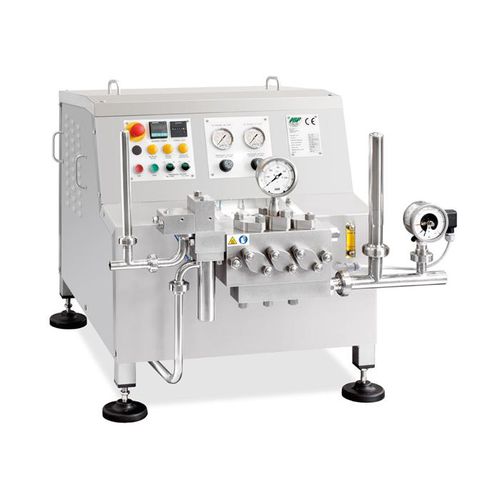

Dynamic homogenizer FBF3008

solid/liquidstainless steelautomatic

Compression head and Homogenizing valve The Compression head is manufactured from a single block (easy and fast maintenance) of high quality stainless steel of a special type, with a 5 year guarantee against cracking and defects Pumping Pistons coated with a special “Diamond Like Carbon” plating (as a standard) Interchangeable Valve group assemblies available in special materials depending on the products to be processed The Homogenizing valves are designed to be energy efficient, with high stability and alignment of the moving parts (impact head) due to the hydrodynamic assembly, which ensures a vibration free homogenization Safety valve, in sanitary execution, of spring type with replaceable shutter and seat Motorization – Structure The pump body is made using a thick walled premium grade high-resistance cast iron, engineered to withstand heavy loads and cancel out vibration The crankshaft is made from a special steel, machined from a solid piece, which has been heat treated and with superfinishing of the goosenecks and complete nitriding The crankshaft is supported by robust roller bearings (with bronze bearings used only on the crank pins) Power transmission with a double reduction stage: “V” belts/pulleys, with parallel axes reduction gear 3 phase, 4 poles, AC electric drive motor of leading Company Lubricating plant of oil splash type. The mechanical components are in oil-bath and the correct oil level is checked by a proper inspection window installed on the front side of the machine The structure is made from square-section pipe frame in stainless steel execution, provided with separate stainless steel panels with satin finish
