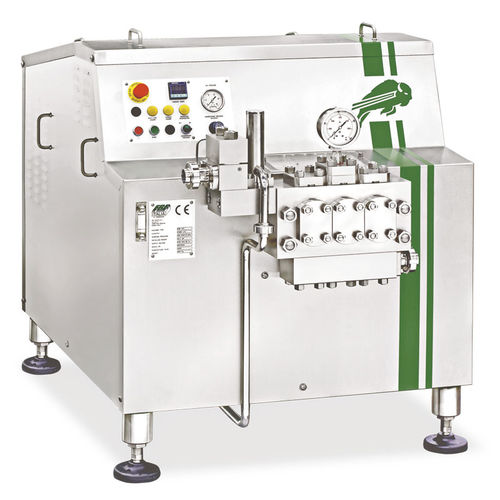

Dynamic homogenizer FBF4022

solid/liquidstainless steelfor the food industry

Compression head and Homogenizing valve The compression head is manufactured from a single block of high quality stainless steel, of special type, forged and checked with ultrasounds, with a 5 year guarantee against cracking and defects The pumping pistons are coated with special “Diamond Like Carbon” plating (as a standard) The valve group assemblies have replaceable seats and hemispherical valve shutters, making them ideal for processing a wide range of products The Homogenizing valves are designed to be energy efficient, with high stability and alignment of the moving parts (impact head) due to the hydrodynamic assembly, which ensures a vibration free homogenization Safety valve, in sanitary execution, of spring type with replaceable shutter and seat Motorization – Structure The pump body is made from a thick walled premium grade high-resistance cast iron, engineered to withstand heavy loads and cancel out vibration The crankshaft is made from a special steel, machined from a solid piece, which has been heat treated and with superfinishing of the goosenecks and complete nitriding; the crankshaft is supported by robust roller bearings (with bronze bearings used only on the crank pins) Power transmission with a double reduction stage: “V” belts with reduction gear with parallel axes, sourced from a leading Company (eliminating the need for water cooling) 3 phase, 4 pole, AC electric drive motor supplied by a leading Company
