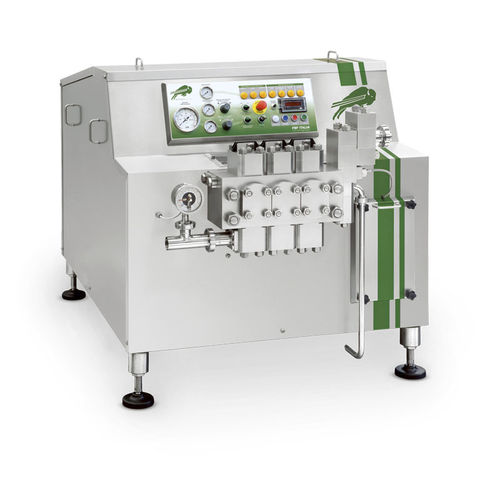

Dynamic homogenizer FBF6030

solid/liquidstainless steelfor the food industry

Compression head and Homogenizing valve The Compression head is manufactured from a single block of high quality stainless steel, of a special type, forged and checked with ultrasounds, with a 5 year guarantee against cracking and defects Each valve assembly is housed within an individually inspected special AISI 316 stainless steel block Pumping Pistons manufactured with a rear cooling chamber, a double guide to keep a perfect alignment, and a special “Diamond Like Carbon” plating (as a standard) Valve group assemblies have replaceable seats and hemispherical valve shutters, ideal for processing a very wide range of products Homogenizing valves designed to provide efficient use of energy, with high stability and alignment of the moving parts (impact head) due to the hydrodynamic assembly, which ensures a vibration free homogenization Safety valve, in sanitary execution, of spring type with replaceable shutter and seat Motorization The Pump body is made from a thick walled premium grade high-resistance cast iron, engineered to withstand heavy loads and cancel out vibration The crankshaft is made from a special forged steel, machined from a solid piece, ”multi-step” heat treatments, superfinishing of the goosenecks and complete nitriding, is checked using ultrasounds. The crankshaft is supported by 5 robust roller bearings (with bronze bearings used only on the crank pins)
