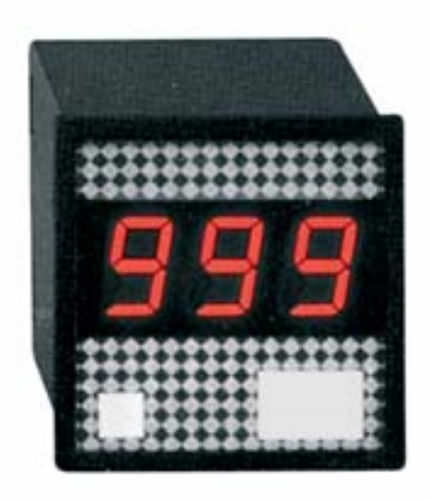

Process indicator 48 x 48 mm, 2 VA | DF 32digitalpanel-mount
Add to favorites
Compare this product
Characteristics
- Measured value
- process
- Display
- digital
- Type
- panel-mount
Description
TECHNICAL DATA
Max. reading: 999Z-99
Led: 7 segments 14mm red, high efficiency
Decimal points: programmable
Fullscale adjustment: through frontal trimmer
Over range ind.: EEE/---
Zeroing: by trimmer
Accuracy: ±1 digit
Linearity: ±1 digit
Reading: 4 for second
Input impedance: 100R-h10M (5K standard)
Overload: 100%
Consumption: 2VA
Working T°: -10/+60°C
Storage T": -40/+80°C
Relative humidity: (h90% (non condensing)
Protection degree:
• on back side: IP20
• on front side: IP55
• w/f/? covering type C49: IP65
