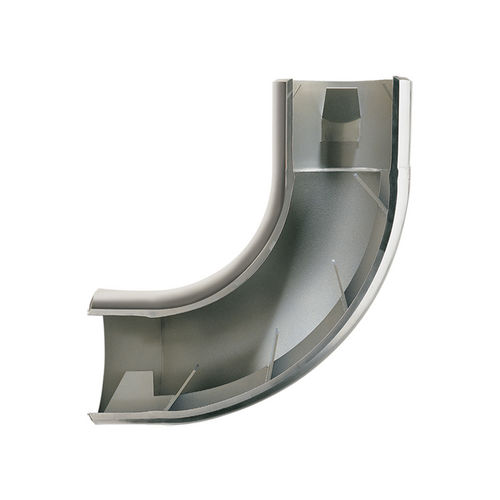

Flow measurement flow conditioner VORTAB® VEL 90°

The VORTAB VEL 90° Elbow flow conditioner provides a low pressure loss solution to flow profile irregularities caused by elbows and other disruptions that commonly occur upstream of that elbow in piping and duct runs. Only 3 pipe diameters of straight run between the Vorel and flow meter is required. The VEL configuration offers a complete, simple elbow replacement for new and existing piping systems. Applications Increases pump efficiency and longevity Piping with inadequate straight runs or upstream disturbances Temperature and pressure stratification Process conditioning for blowers, compressors, burners and other critical process equipment Reduces pump noise and maintenance costs Flow conditioning for calibration and test benches Processes that require repeatable, symmetric and swirl-free velocity flow profiles Specifications Process Media: Gases, liquids and slurries Materials of Construction: 316L stainless steel Carbon steel Hastelloy C Other materials of construction available Pipe Size: 2 inch [51 mm] 3 inch [76 mm] 4 inch [102 mm] 6 inch [152 mm] 8 inch [203 mm] 10 inch [254 mm] 12 inch [305 mm] Other pipe sizes available Pipe Schedule: Schedule 40 Schedule 80 Other pipe schedules available Pipe Connection: Weld preparation Flanged, up to 600 lb rating Male NPT, up to 4 inch pipe size
