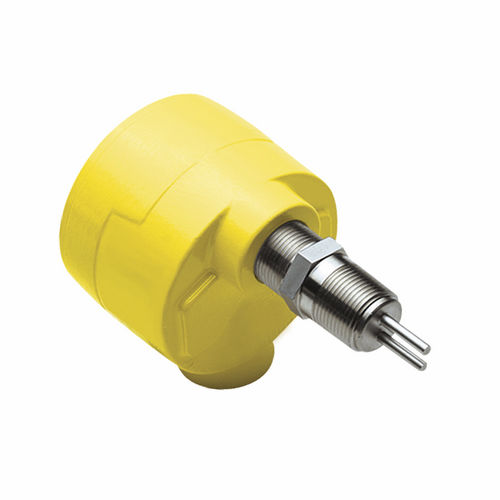

Thermal level switch FLT93B

for liquidsfor sediment level detectionATEX

The FLT93B BASIC insertion type FlexSwitch for level and temperature monitoring represents the first true technological breakthrough in thermal technology in over a decade. FCI is the only thermal manufacturer providing temperature compensation to ensure set point accuracy for process temperatures that vary up to ± 100° F. The FLT93B is easily field-configured, providing unparalleled flexibility, accuracy and stability for all multiple process sensing and switching requirements. The FLT93B BASIC level switch is available with all of the below listed standard features for a very attractive price and with quick delivery as soon as 2 business days ARO. Applications Interface and sump level detection Interface/sump level detection in separation vessels Agitation detection Interface/level detection in settling vessels Foam or sediment level control Liquid/resin interface detection Specifications Optional N.I.S.T. Flow Calibration Services Factory N.I.S.T. calibration in air or water is available as an option for customer specified setpoint(s) or a flow curve based on the media ranges specified above Flow Element Materials of Construction: All welded 316L stainless steel for all wetted surfaces. Process Connection: 0.75 inch male NPT Insertion Length: 1.2 inch [30 mm] 2 inches [51 mm] 4 inches [102 mm] Control Circuit Input Power: Field selectable 115 ± 15 Vac or 230 ± 30 Vac (50/60 Hz); 21 to 28 Vdc or 18 to 26 Vac; 7 watts maximum. Relay Contacts: Field configurable dual SPDT or single DPDT rated 6 amps at 115 Vac, 240 Vac or 24 Vdc. Output Signal: Analog DC voltage related to flow or level/interface signal and proportional to temperature.
