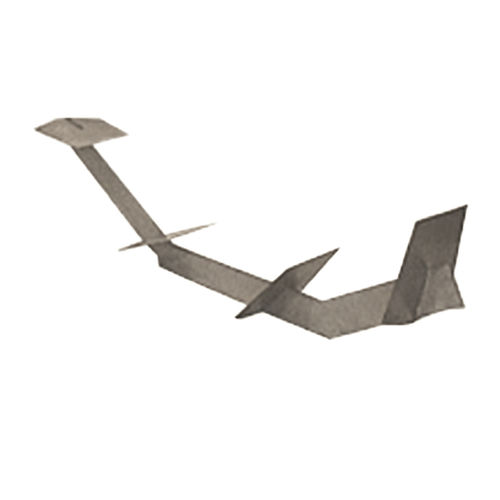

Flow measurement flow conditioner VORTAB® VFK

The VORTAB® VFK Field Tab Kit flow conditioner provides a low pressure loss solution to flow profile irregularities caused by elbows, valves, blowers, compressors and other disruptions that commonly occur in piping and duct runs. Applications Piping with inadequate straight-runs Temperature and pressure stratification Process conditioning for control valves, blowers, compressors, burners and other critical process equipment Flow conditioning for calibration and test benches Processes that require repeatable, symmetric and swirl-free velocity flow profiles Specifications Process Media: Gases, liquids and slurries Materials of Construction: 316L stainless steel Carbon steel Hastelloy C Other materials of construction available Nominal Pipe or Duct Size: 36 inch [914 mm] and larger only Installation Method: Field welded in place. Flow Conditioner Length: 3 pipe diameters Custom Configurations: Contact FCI
