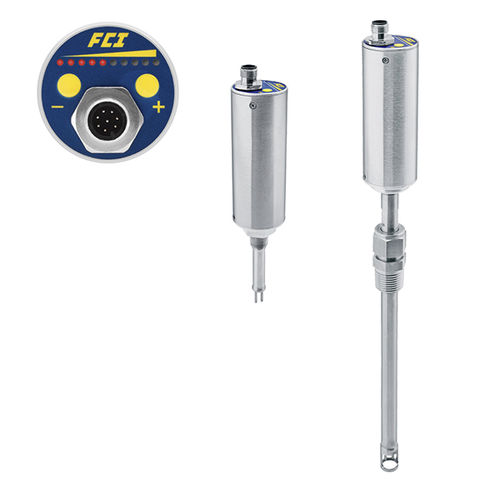

Thermal mass flow meter FS10i
massfor gasinsertion

Add to favorites

Compare this product

Go to the FCI Fluid Components International website for more information

Characteristics

Technology

thermal mass

Type

mass

Fluid

for gas

Installation

in-line, insertion

Communication

4-20 mA

Other characteristics

compact, economical, programmable

Volumetric flow rate

Min.: 1.7 m³/h
(60.0349 ft³/h)

Max.: 339.8 m³/h
(11,999.9238 ft³/h)

Process temperature

Min.: -1 °C
(30 °F)

Max.: 82 °C
(180 °F)

Process pressure

Min.: 10 psi

Max.: 50 psi

Description

The FS10i is a compact, economical solution to natural gas flow metering. Utilizing application proven thermal mass flow technology, the FS10i provides a highly accurate and repeatable linearized 4-20 mA output of flow rate. It was the first thermal flow meter, and is currently the only one, to comply with SIL 2. Additionally, for applications benefiting from a high or low flow alarm point, the FS10i includes a user programmable 1A SPDT relay output. Flow Meter Features Direct Mass Flow Measurement Ultra Reliable, No Moving Parts Design Easy Set-Up Via Serial I/O to PC Interface 10 LED Display Array Easy M12 or Cable Gland Connection With Electronics SIL 2 Compliance Rating Optional Div 2 / Zone 2+Zone 22 Approvals Applications Sub-metering Furnace fuel lines Gas-fired ovens and heaters Gas engine fuel feed Kilns and calciners Boilers Instrument Measuring Principal: Thermal dispersion Fluid Type: Natural gas Process Connections In-line: 1 ″ or 2 ″ pipe tee, FNPT threads Insertion: 1/2 ″ MNPT compression fitting with either Teflon or metal ferrule Repeatability: ± 0.5 % of reading
