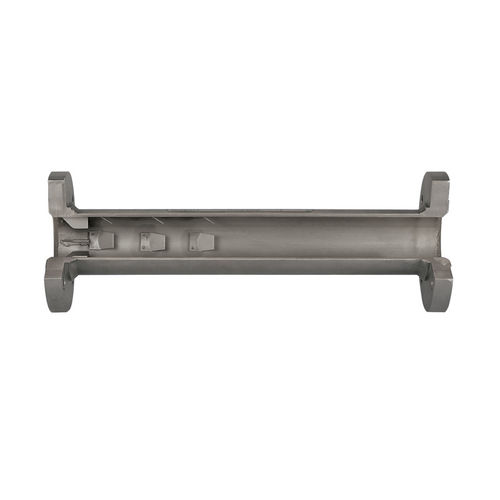

Flow measurement flow conditioner VORTAB® VMR

The VORTAB® VMR Meter Run flow conditioner provides a low pressure loss solution to flow profile irregularities caused by elbows, valves, blowers, compressors and other disruptions that commonly occur in piping and duct runs. The VSR Meter Run configuration is available for those applications that require lengths shorter than the VMR lengths. Applications Piping with inadequate straight-runs Temperature and pressure stratification Process conditioning for control valves, blowers, compressors, burners and other critical process equipment Flow conditioning for calibration and test benches Processes that require repeatable, symmetric and swirl-free velocity flow profiles Specifications Process Media: Gases, liquids and slurries Materials of Construction: 316L stainless steel Carbon steel Hastelloy C Other materials of construction available Pipe Size: 2 inch [51 mm] 3 inch [76 mm] 4 inch [102 mm] 6 inch [152 mm] 8 inch [203 mm] 10 inch [254 mm] 12 inch [305 mm] Other pipe sizes available Pipe Schedule: Schedule 40 Schedule 80 Other pipe schedules available Pipe Connection: Weld preparation Flanged, up to 600 lb rating Male NPT, up to 4 inch pipe size Flow Conditioner Length: For 2 inch: 8 pipe diameters For 3 inch and larger: 7 pipe diameters Flow Meter Process Connection: 0.75 inch, 1 inch or 1.25 inch female NPT 1.25 inch male NPT ANSI 150 lb., 300 lb. or 600 lb. raised face flange
