Board-to-board connector USBFPC/FFCbackplane
Add to favorites
Compare this product
Characteristics
- Format
- board-to-board, USB, FPC/FFC, backplane
- Shape
- rectangular
- Connection type
- locking
- Electrical characteristics
- high-speed
- Product applications
- for PCs
- Other characteristics
- in-line, compact
- Pitch
0.3 mm
(0.012 in)- Data rate
10 GB/s
Description

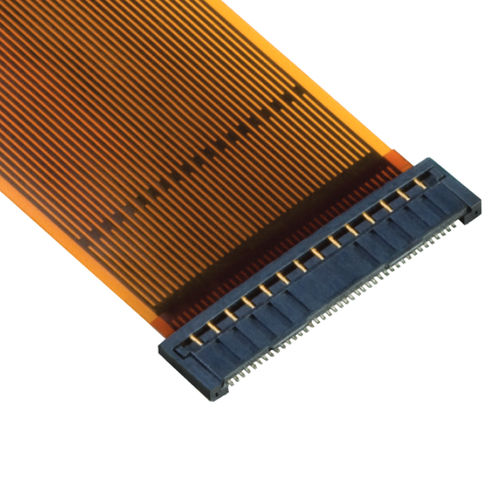

High speed FPC (Flexible Printed Circuit) is a connector with capability to transfer data rates up to 10Gb/s. It has a 0.3mm pitch, in-line layout and back flip actuator coupled with locking feature for strong FPC retention.
AFCI’s high speed FPC connector provides a low profile and compact solution whilst maintaining high speed signal integrity. It is very suitable for applications where space is a constraint.
It also complies with standards like USB 3.1/3.0, PCIe 2.0, SATA 3.0, Displayport and MIPI M-Phy.
High speed FPC finds application in tablets, notebooks, high definition displays and devices with intermodular Board-To-Board connection demanding high data rate transmissions.
TARGET MARKET / APPLICATION
Consumer
Note PC/Ultrabook
Tablet
High Definition Display
