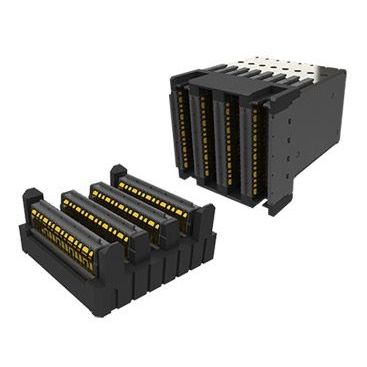

Electrical power supply connector EXAMAX2®

mezzaninebackplaneindustry

Supporting 112Gb/s PAM4 Performance The ExaMAX2® backplane connector system supports 112Gb/s PAM4 industry specifications. It maintains mating interface compatibility with previous ExaMAX products to allow cost/performance flexibility for designers. The mating interface and connector design is optimized to support the demanding electrical and mechanical requirements of 112G systems. ExaMAX2 delivers industry leading SI performance include RL, ILD and reflections. The innovative beam-on-beam mating interface provides improved SI performance and exceptionally low mating forces 100% backward mating compatible to previous ExaMAX products Industry leading RL and reflections performance No resonances before 60GHz Available in both a 90ohm version and 85ohm version 90ohm nominal impedance version 85ohm nominal impedance version Beam-on-beam mating interface One additional signal pin per column T-top pre-load and protection Supports multiple system structures Meets Industry specifications such as OIF 112Gpbs PAM4 and IEEE 100Gbps PAM4 Meets Industry specifications such as PCIe 6.0 and UPI3.0 Provides low crosstalk while eliminating insertion loss resonances Reduces mating force up to 65% compared to traditional blade and beam designs Integrates high and low speed signals into the same connector Protect the beam tip during mating process Traditional backplane, midplane orthogonal, direct-mate orthogonal, coplanar, mezzanine
