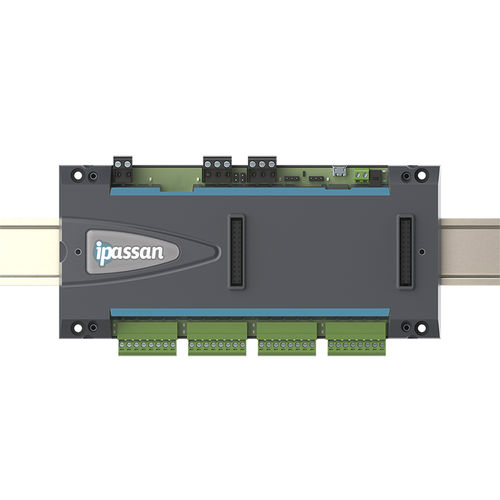

Access control door unit FD-125-002

Dimensions (L X W X h) : 200mm x 90mm x 34 mm (210mm x 14iûm x 65mm with cover). DIN rail or wall mounted. High system modularity. Local or remote programming. Up to 64 controllers in TCP/IP network, 384 doors in total per network Up to 32 controllers in RS485 network within 1000m, 192 doors in total 100 000 credentials, 2 000 groups. 220 inputs or outputs per controller = 14080 possible inputs or outputs per TCP/IP network or 7040 in RS485 20 000 events per controller Lift management (max 64) up to 110 floors Management of 2 wire readers, RF receivers and keypads inorder to update their firmware. Permanent diagnosis via LEDS Operating temperature : -10°C to +60aC 12V power supply. Also available with POE, ref FD-125-001
