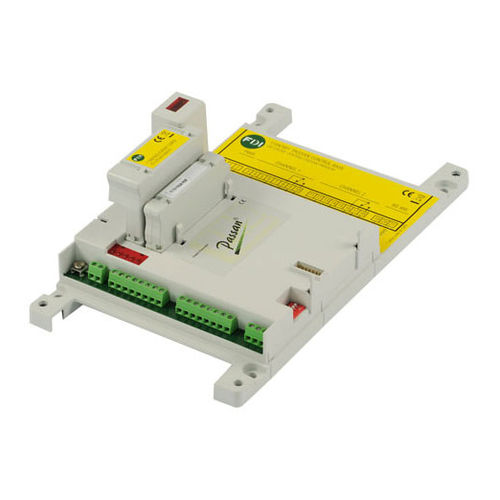

Access control door unit GB-120-209

■Dimensions (H X L X D) : 280mmx161mmx97mm ■Great modularity ■Local or remote programming ■Diagnosis with leds : power, readers and connecting networks. ■6000 events per controller ■Up to 32 controllers networked on 1000m, 192 doors in total, 256 inputs or outputs, 64 lifts of 40 floors up maximum, 64 entry panels ■Mangement of readers, receivers, FDI 3 wire keypads and any other technology via Wiegand Passan Premium interface ■Local or remote programming via RS232, modem or TCP/IP with option. ■Permanent diagnosis via power and peripherals leds » 10 000 keys, 120 groups. ■Operating temperature : 0aC à +50aC Passan Premium is a modular and stackable controller especially suited to medium and large residential community. Thanks to its advanced features, the system is also suitable for small and medium commercial buildings such as offices, sport halls, etc... The controller can control up to two doors. Expansion cards for doors 3/4 and 5/6 are used to increase the capacity of the controller from 2 to 6 doors. Passan Premium can also be connected in network. 32 controllers maximum can be connected together to control 192 doors. Passan Premium is also charactensed by the possibility to manage and combine the most diverse technologies to be adapted to the diversitiy of needs. The controller can handle all type of readers : keypads, proximity readers, RF receivers and is open to any other technology via the optional Wiegand interface.
