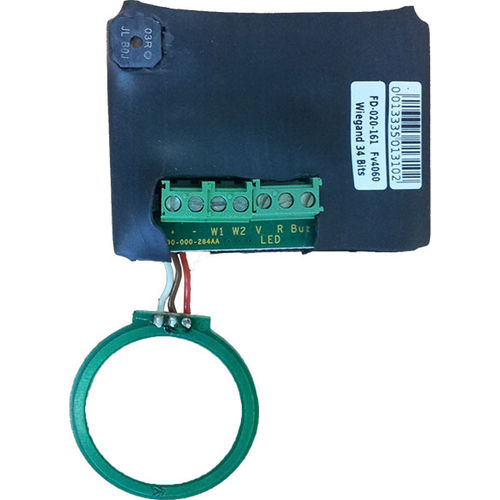

Proximity card reader FD-020-161

Wiegand13.56 MHz

»Windows dimensions: 40*40mm »Plastic dimensions (I x w x d): 80*50*27 (terminals included) »Wiring : 5 to 7 wires 100m 6/10 (AWG24) »Operating temperature : -20° to +60° »Power supply: 12 Vcc /50mA (provided by the controller) »Frequency : 13.56 MHZ »Reading range : Up to 4 cm (depending on the key) »Protection : Diode and transil The 13.56 OEM reader is a proximity reader designed to work with Wiegand protocol. The output format is 34 bits. It has been especially designed to fit in a 1039/13 Ipervoice panel. The reader is connected to the acess control system throuhg 5 to 7 wires depending on the controller. In fact, with Wiegand protocol, each led or buzzer is managed through a specific input. In our case, the reader ciyld be connected with psu (2 wires), Wiegand (2 wires), green and red leds + buzzer (3 wires).
