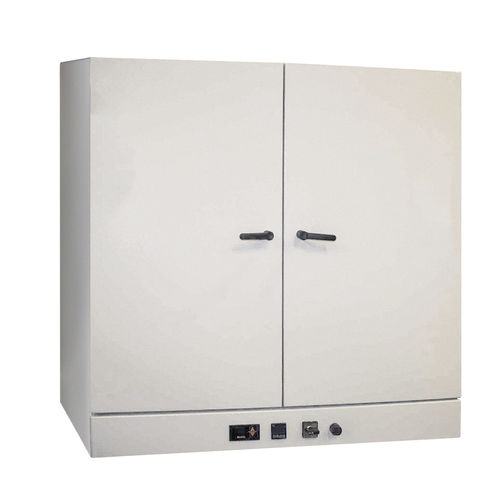

Chamber oven O420/300FV

dryingagingtempering

Model: O420/300FV Robust and precise oven for the thermal treatment; drying, heating, thermal testing, aging and similar purposes in forced air-flow environment up to 300°C. The fdm ovens are classic products for the thermal test laboratories, educational institutions, material test in general and industry. The boost air-flow allows a homogeneous temperature distribution, which guarantees a ideal temperature. The fdm ovens are realized with the best components which ensure a durable test. Net Volume: 420 liters Continuous operating temperature: +10°C...+300 °C Maximum temperature: +300°C Working chamber surroundings: air (with hot air fan) Airflow: horizontal Shelves (number)/max: 3/7 Maximum heating- up time (without charge) up to 350°C: 40 min. Temperature stability in working chamber at rated temperature in thermal steady state without charge not more than: ±1°C Temperature uniformity in working space at 350°C temperature in thermal steady state without charge not more than: ±9°C Internal chamber dimensions: 1000X500X860 (WXDXH) External chamber dimensions: 1200X930X1200 (WXDXH) Weight: 178 Kg Rated power: 6.2 kW Rated supply voltage: 230 V Rated frequency: 50 Hz (60 Hz Optional) Number of phases: 1
