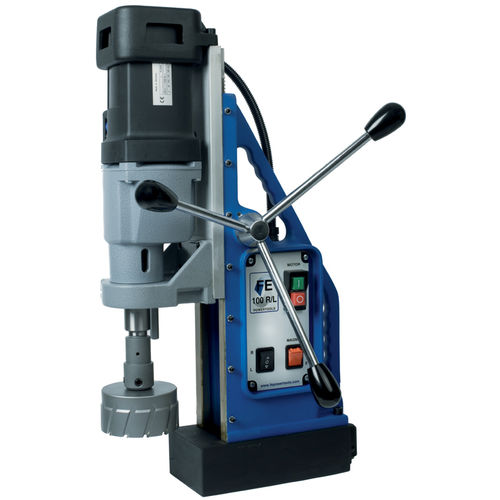

Magnetic drilling machine FE 100 R/L X

FE 100 R/L X magnetic drilling machine, suited for any task you can think off. A more complete machine you cannot wish for. With the exchangeable Morse taper 3 makes you can drill with hole cutters up to Ø 100 mm, tap up to M30 and use twist drills up to Ø 31.75 mm. On request this machine can be supplied with auto coolant system. This magnetic drilling machine is powered by a strong 1800 watt Eibenstock motor. The motor is equipped with a torque control, enabling you to have full control over your drilling operations. All our mag drills machines can be supplied in 110 Volt as well as in 230 Volt. Magnetic Drilling Machine FE 100 R/L X Motor power: 1800 Watt Spindle: Morse taper 3 - 19 mm (3/4") Weldon Hole cutter / annular cutter short (30 mm): Ø 12 - 100 mm (4") Hole cutter / annular cutter long (55 mm): Ø 12 - 100 mm (4") Hole cutter / annular cutter extra long (75/110 mm): Ø 12 -100 mm (4") Countersink: Ø 50 mm (2") Reaming: Ø 31.75 mm (1-1/4") Twist drills: Ø 31.75 mm (1-1/5") Tapping: M6 - M30 RPM: I 40-140 min-1 - II 120-480 min-1 Stroke: 250 mm (9.85") Weight: 27 Kgs (59.5 Lbs) Magnet power: 16.250 N Standard delivery of Magnetic Drilling Machine FE 100 R/L X contains: 1 mag drill 1 Morse taper no 3 1 pilot pin FEPP 75 (Ø 6.35x79 mm) 1 pilot pin FEPP 100 (Ø 6.35x103 mm) 1 pilot pin FEPP 90 (Ø 8.0x90 mm) 1 pilot pin FEPP 120 (Ø 8.0x122 mm) 1 Morse taper no 3 remover 1 PP carrying case 1 safety chain 1 manual
