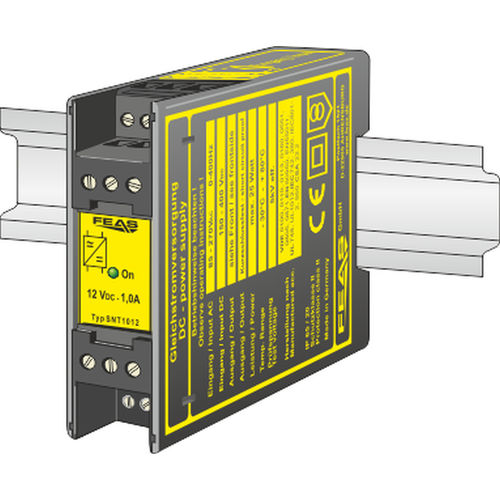

LED lighting power supply SNT1012

AC/DCDC/DCsingle-output

The switch-mode power supplies of the SNT10 series are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of the SNT1012 is 12 V. This power supply is optimally suited for loads requiring high starting currents. Switch-mode controller with low residual ripple Boost with 200% Operating status shown by LED Parallel connection possible Short circuit proof Overload- and open circuit protected Suitable for the tropics - epoxy resin casted Output separated according to VDE 0551 Extra low safety potential PELV (EN 60204), SELV (EN 60950) Safety according to VDE, EN, UL, CSA Adjustment range: - ----- Efficiency: - 77% Residual ripple: - < 50mVSS Operating temperature range: - -40°C / +80°C Dimensions (WxHxD): - 22.5 x 75.0 x 98.5 mm Weight: - 0.30 kg
