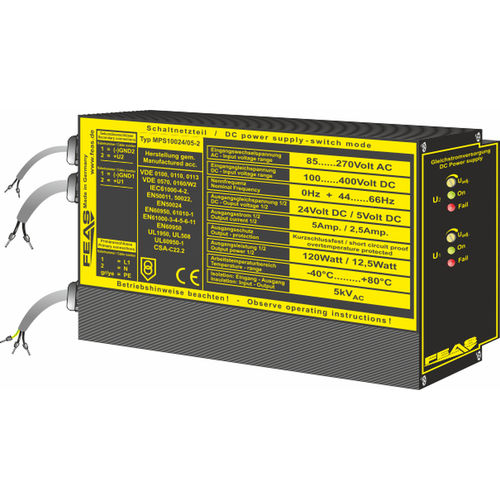

19" rack power supply MPS10024/05-2

AC/DCDC/DCregulated

The switch-mode power supplies of the MPS100 series are powerful and robust devices to power sensitive loads in a rough industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this model can be adjusted. The output current can rise up to 150% of rating, therefore this power supply is suitable for loads requiring high starting currents. Boost with 150% INominal Protective class IP68 2 galvanically isolated outputs Adverse voltage possible Operating status shown by LED Parallel connection possible Short circuit proof Overload- and open circuit protected Suitable for the tropics - epoxy resin casted Output separated according to VDE 0570 Extra low safety potential PELV (EN 60204), SELV (EN 60950) Safety according to VDE, EN, UL, CSA Adjustment ranges: - 22.5 - 30.0 VDC and 3,2 - 6,2 VDC Efficiency: - 89% Residual ripple: - < 50mVSS Operating temperature range: - -40°C / +80°C Dimensions (WxHxD): - 179.9 x 111.0 x 40.0 mm Weight: - 1.25 kg
