On-line UPS LDR2012
12 VNi-MHrugged

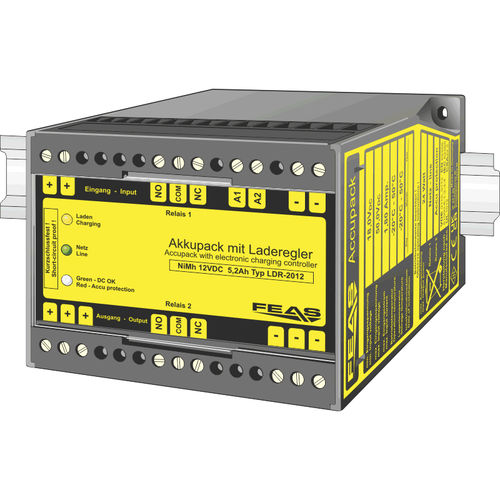

On-line UPS - LDR2012 - FEAS GmbH - 12 V / Ni-MH / rugged
On-line UPS - LDR2012 - FEAS GmbH - 12 V / Ni-MH / rugged
On-line UPS - LDR2012 - FEAS GmbH - 12 V / Ni-MH / rugged - image - 2
Add to favorites
Compare this product


Characteristics

Type
on-line
Electrical characteristics
12 V
Type of energy storage
Ni-MH
Other characteristics
rugged, remote monitoring
Applications
industrial
Configuration
DIN rail, wall-mounted
Certifications
IEC, CE
Output power kVA

0.024 kVA
(0.032631 hp)

Input voltage

Min.: 18 V

Max.: 50 V

Output voltage

12 V

Description

These FEAS-Accumulator packs with electronic charging regulators are suited to buffer 12 Volt systems. They will ensure the power supply in case of a mains power failure and prevent the loss of your valuable data or the total breakdown of your production line. Regardless of for what you will apply the DC-UPS, you will always have the perfect protection against blackouts, which oftentimes can cause high costs. No overcharging Safeguard against total discharge Messages with remote monitoring Power failure notification Operating status shown by LED Integrated DC-DC Converter No charger necessary Replaceable battery pack - epoxy resin casted Safety acc. to VDE, EN, UL, CSA Output current: - 1.8 A Capacity: - 5.2 Ah Efficiency: - 82% Residual ripple: - < 50 mVSS Operating temperature range: - -20°C / +50°C Dimensions (WxHxD): - 100.0 x 75.0 x 110.0 mm Weight: - 1.45 kg
