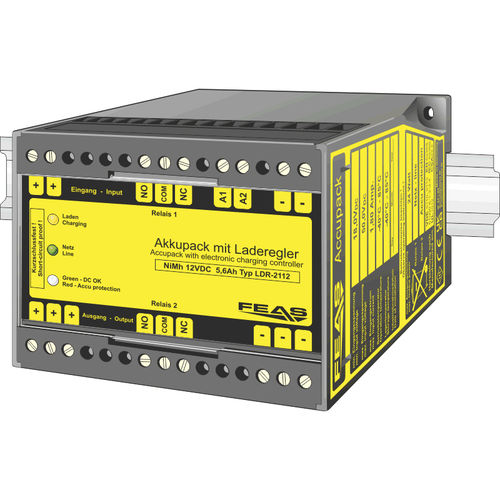

On-line UPS LDR2112

12 VdcNi-MHDIN rail

These FEAS-Accumulator packs with electronic charging regulators are suited to buffer 12 Volt systems. They will ensure the power supply in case of a mains power failure and prevent the loss of your valuable data or the total breakdown of your production line. Regardless of for what you will apply the DC-UPS, you will always have the perfect protection against blackouts, which oftentimes can cause high costs. High Temperature accupack: -20°C .... + 70°C No overcharging Safeguard against total discharge Messages with remote monitoring Power failure notification Operating status shown by LED Very high storage capacity NiMH-Accus Integrated DC-DC Converter No charger necessary Suitable for the tropics - epoxy resin casted Safety acc. to VDE, EN, UL, CSA Battery replacement The replacement of the battery pack is only possible in the factory. (39106) For this DC-UPS recommended power supplies 85 - 270VAC / 120 - 400VAC (switch mode): Power supply SNT4024 115V / 230VAC (smoothed): Power supply PSLC243 85 - 270VAC / 120 - 400VAC (switch mode): Power supply SNT4028 115V / 230VAC (smoothed): Power supply PSLC283 400VAC (smoothed): Power supply PS2LC243 Output current: - 1.8 A Capacity: - 4.4 Ah Efficiency: - 82% Residual ripple: - < 50 mVSS Operating temperature range: - -20°C / +70°C Dimensions (WxHxD): - 100.0 x 75.0 x 110.0 mm Weight: - 1.45 kg Mounting: - On rails acc. to DIN 46277, wall mounting possible
