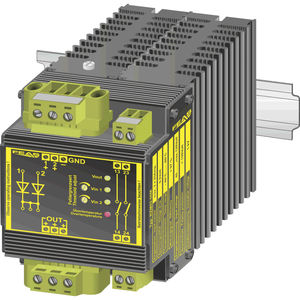

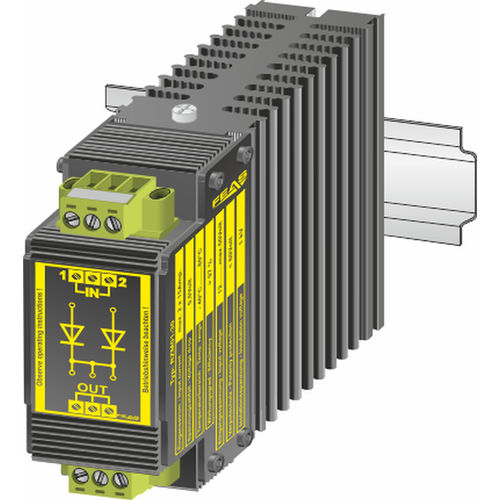

Redundancy module for DC power supplies RZM01-30

adjustable

FEAS Redundancy modules provide the decoupling of two identical DC-Powersupplies in order to either increase the output power or achive a higher degree of system stability. In case of mains power failure or an internal defect of one power supply, the other power supply is still feeding the DC-circuit without interruption. For this, the performance of the used power supplies are calculated in a way, that all consumers can be powered with just one DC-power supply. With this method, the operational reliability of the whole system is effective enhanced. Integrated cooling element Reverse voltage protection Vibration proof Suitable for the tropics - epoxy resin casted Simple mounting on rail acc. to DIN 46277 Conforms to EMC and low voltage directive Safety acc. to VDE, EN, UL, CSA Voltage range: - 5.0 - 50.0 VDC Input current: - 2 x 15 Amp. Ouput current: - 1x 30 Amp. Operating temperature range: - -40°C / +80°C Dimensions (WxHxD): - 40.0 x 99.0 x 118.0 mm Weight: - 0.68 kg Mounting: - On rails acc. to DIN 46277
