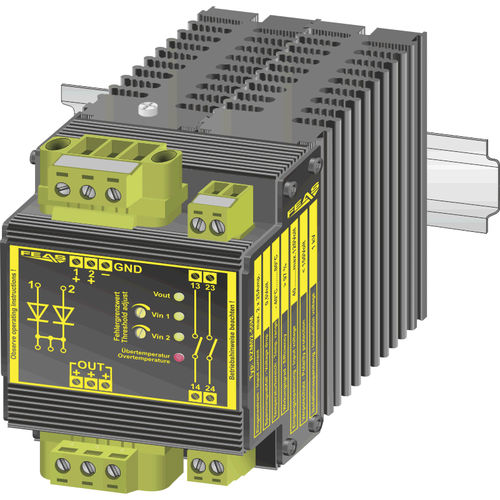

Redundancy module for DC power supplies RZM02-50M

adjustable

FEAS Redundancy modules provide the decoupling of two identical DC-Powersupplies in order to either increase the output power or achive a higher degree of system stability. In case of mains power failure or an internal defect of one power supply, the other power supply is still feeding the DC-circuit without interruption. For this, the performance of the used power supplies are calculated in a way, that all consumers can be powered with just one DC-power supply. With this method, the operational reliability of the whole system is effective enhanced. Integrated cooling element Reverse voltage protection Thermal overload protection Operating status shown by LED Vibration proof Suitable for the tropics - epoxy resin casted Simple mounting on rail acc. to DIN 46277 Conforms to EMC and low voltage directive Safety acc. to VDE, EN, UL, CSA Voltage range: - 11.5 - 50.0 VDC Input current: - 2 x 25 Amp. Ouput current: - 1 x 50 Amp. Operating temperature range: - -40°C / +80°C Dimensions (WxHxD): - 73.5 x 107.0 x 118.0 mm Weight: - 1.28 kg Mounting: - On rails acc. to DIN 46277
