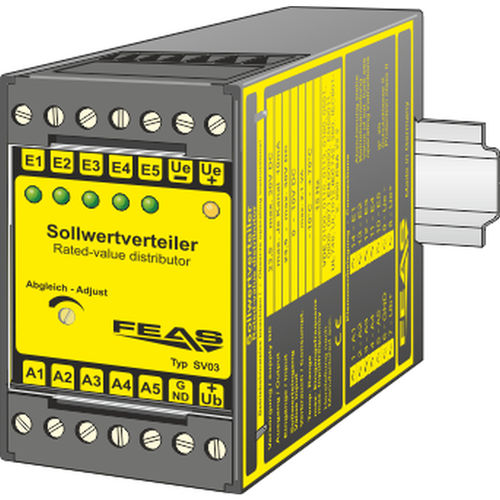

Adjustable power output distributor SV03

IP20DIN rail

The rated-value distributor of the SV03 series is to be used for transmitting and distributing a nominal voltage between 0 volts and 10 volts to five outputs which can be switched independently from each other. Transmitting and distributing a nominal voltage to five outputs Separated Outputs Operation status shown by LED compact enclosure design Suitable for the tropics - epoxy resin casted Safety acc. to VDE, EN, UL, CSA Rated input: - 0 - 10.0 volts Rated value output: - 5 x 0 - 10.0 volts Operating voltage: - 23.5 - 30.0 VDC Operating temperature range: - -10°C / +70°C Dimensions (WxHxD): - 45.0 x 75.0 x 110.0 mm Weight: - 0.50 kg Mounting: - On rails acc. to DIN 46277 or wall mounting with screws
