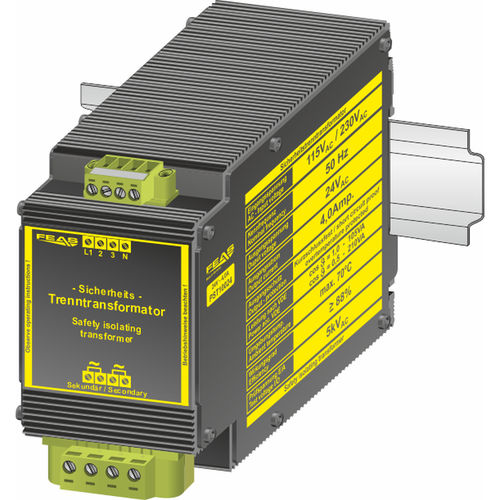

Isolation transformer PST10024

cast resinindustrialhigh-power

The Safety isolating transformer of the PST100 series are powerful and robust transformers to power devices with low alternating input voltage. The PST10024 transforms AC line voltage into short circuit proof 24V -output voltage, suited for AC the consumer. The input voltage can be 115V or 230V. Due to the uncomplex circuit arrangement the device shows a long life span and a high degree of efficiency (>80%). Because of its robust design, casted in a rugged aluminum housing, it is particularly suitable for being used in rough industrial environment, e.g. in shipbuilding. Output separated according to VDE 0551 Extra low safety potential PELV (EN 60204), SELV (EN 60950) Overload- and open circuit protected Short circuit proof Parallel connection possible Suitable for the tropics - epoxy resin casted Safety acc. to VDE, EN, UL, CSA Input voltage (VDC): - 115 VAC / 230 VAC (45-66 Hz) Output voltage (VDC): - 24 VAC Output current: - 4.0 Amp. Power at cos ϑ = 1.0: - 105 VA Power at cos ϑ = 0.5: - 210 VA Efficiency: - 88 % Operating temperature range: - -40°C / +70°C Dimensions (WxHxD): - 64.0 x 100.0 x 120.0 mm Weight: - 2.00 kg Mounting: - On rails acc. to DIN 46277 or wall mounting with screws
