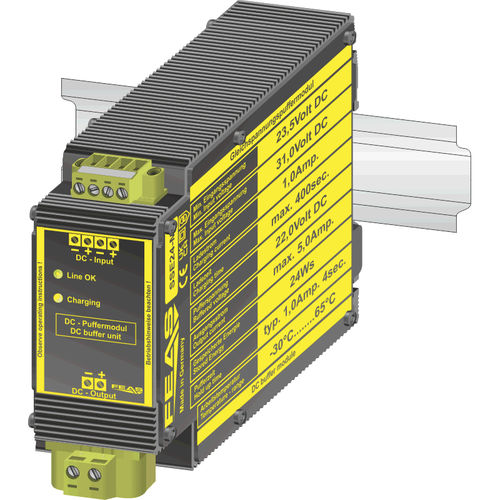

Mini UPS SSE24-M

24 Vdcwith supercapacitormaintenance-free

Maintenance-free mini DC UPS for bridging mains failures in the seconds range, cost-effective and compact UPS for critical loads in industrial use The SSE24-M buffer module stores the required energy in internal capacitors. Thus, these uninterruptible power supplies (UPS) are absolutely maintenance-free. A rechargeable battery is not installed. Fully encapsulated in an aluminium housing, the capacitor-based buffer module is characterised by its vibration resistance and suitability for industrial and tropical environments. How to install the mini DC UPS / buffer module? The buffer module (DC UPS with electrolytic capacitors) is either connected in parallel directly into the regulated DC circuit at any point or used for selective protection of critical consumers. This prevents malfunctions in control systems due to short-term interruptions in the power supply and considerably increases the reliability of the overall system. Mini DC UPS without power supply / DC buffer module for 24 VDC systems for short-time bridging in the range of seconds for a current requirement of up to max. 5 amps in a particularly compact design - space saving maintenance-free thanks to capacitors - no batteries installed LED operation indicators: DC input, charging short charging times (max. 400 seconds) long service life Safety extra-low voltage simple wiring, easy handling can be connected in parallel short-circuit proof, overload and no-load safe tropicalised due to cast resin encapsulation Safety according to VDE, EN, UL CSA Input voltage (VDC): - 23.5 - 31.0 VDC Buffer voltage: - 22.0 VDC max. Output current: - 5.0 Amp. Hold up time: - typ. 1,0Amp. 4sec. Stored energy: - max. 24 Ws / 24 J
