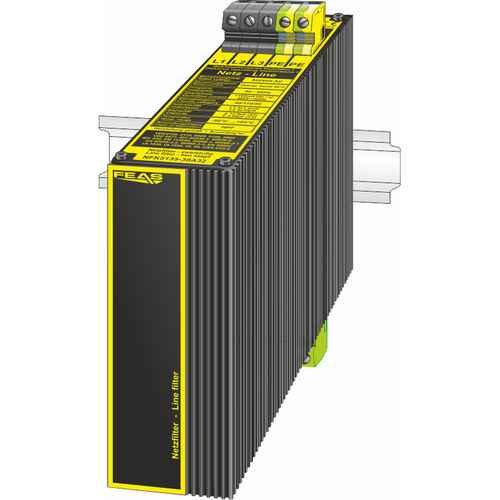

Band-pass electronic filter NFK5135-30A32-H

passivethree-phaseDIN rail

Filters of the NFK5135-30A32 series are used to suppress circuit-bound interferences in three-phase AC power lines without neutral conductor. Interference pulses or interference voltages are dampened independently from their point of origin. To improve the filter effect they are designed with 2 stages and have a high insertion loss on a wide frequency range. High insertion loss over a broad frequency range Using aluminium enclosure in order to improve the heat conduction Suitable for the tropics - epoxy resin casted Safety acc. to VDE, EN, UL, CSA Inductance: - 3 x 1.4mH + 3 x 10µH Capacity: - 3 x 2.2µF + 6 x 1.0µF (X2) und 2 x 0.47µF (Y2) Operating temperature range: - -50°C / +85°C Dimensions (WxHxD): - 51.0 x 181.0 x 160.5 mm Weight: - 2.50 kg
