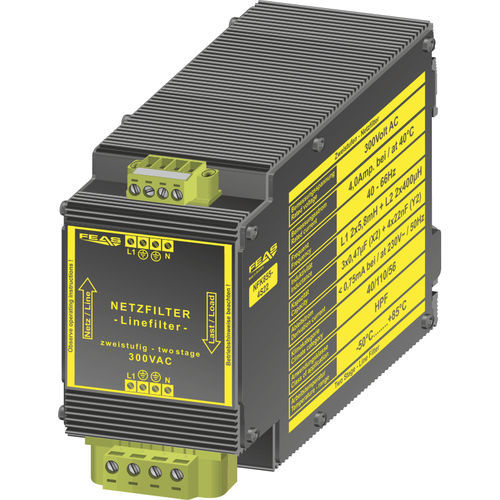

Filters of the NFK855-S series are used to suppress circuit-bound interferences in AC power lines.
Interference pulses or interference voltages are dampened independently from their point of origin. To improve the filter effect they are designed with 2 stages, furthermore these filters are optimized against symmetric interferences and have a high insertion loss on a broad frequency range.
High insertion loss over a broad frequency range
Optimised against interferences in the lower frequencies
Suitable for the tropics - epoxy resin casted
Inductance: - 2 x 5,8mH + 2 x 400µH
Capacity: - 3 x 0.47µF + 4 x 22nF
Operating temperature range: - -50°C / +85°C
Dimensions (WxHxD): - 64.0 x 100.0 x 120.0 mm
Weight: - 1.10 kg
