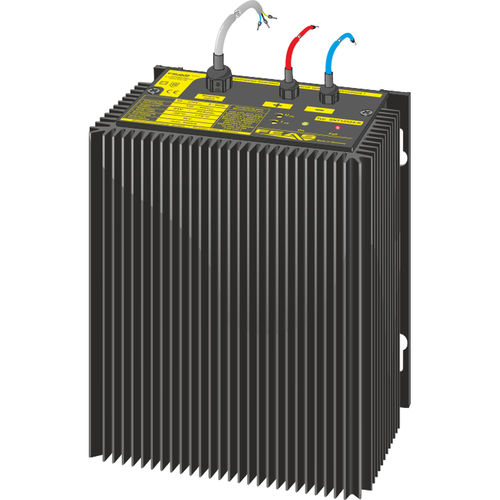

Switching power supply SNT12524-K

AC/DCDC/DCwith short-circuit protection

The switch mode power supplies of the SNT125 series are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this type can be adjusted. The output current can rise to 120% of rating, therefore this power supply is suitable for loads requiring high starting current. Boostfunction: 120% Iout up to 5min Device protection: shutdown on overtemperatur, automatic restart PFC acc. to IEC/EN 61000-3-2 Output separated according to VDE 0570 Extra low safety potential PELV (EN 60204), SELV (EN 60950) Short circuit proof Operating status shown by LED Parallel connection possible Output protected against polarity reversal Suitable for the tropics - epoxy resin casted Safety acc. to VDE, EN, UL, CSA Adjustment range: - 22.5 - 30.0 VDC Efficiency: - >93% Residual ripple: - < 50mVSS Operating temperature range: - -30°C / +70°C Dimensions (WxHxD): - 171.0 x 219.0 x 103.0 mm Weight: - 7.30 kg
