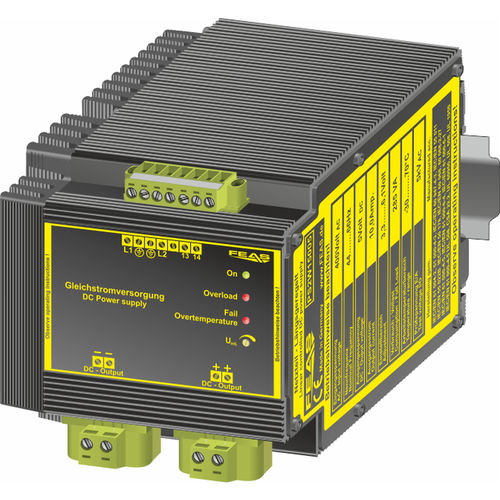

AC/DC power supply PS2W15005

single-outputcurrent outputadjustable

The power supplies of the PS2W150 series are powerful and robust devices with linear controlled output voltage. Under assistance of linear regulation transistors, the smoothed DC voltage is converted into a highly stabilized output. The disadvantage of this circuit principle is the relative high loss of energy into heat. For this reason a maximum of 30% to 50% efficiency can be obtained. Boost for 5 minutes with 120% Shutdown on overtemperature and automatic restart Operating status shown by LED Parallel connection possible Short circuit proof Output protected against polarity reversal Suitable for the tropics - epoxy resin casted Output separated according to VDE 0551 Extra low safety potential PELV (EN 60204), SELV (EN 60950) Safety according to VDE, EN, UL, CSA Adjustment range: - 3.3 - 6.0 VDC Efficiency: - 30% Residual ripple: - < 5mVrms Operating temperature range: - -40°C / +70°C Dimensions (WxHxD): - 110.0 x 100.0 x 120.0 mm Weight: - 3.20 kg
