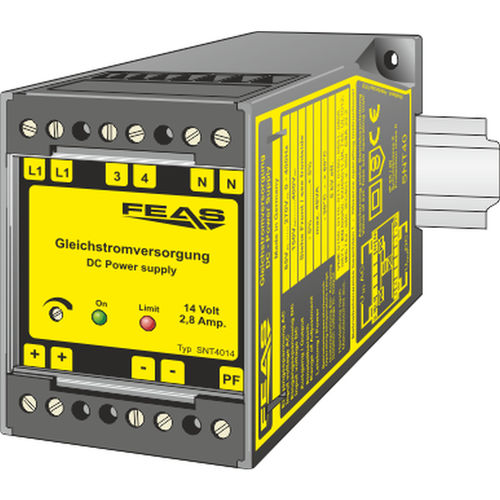

SMPS power supply SNT4014

AC/DCDC/DCsingle-output

The switch mode power supplies of the SNT40 series are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this type can be adjusted. The output current can rise to 200% of rating, therefore this power supply is suitable for loads requiring high starting current. Boost with 200% Operating status shown by LED Parallel connection possible Short circuit proof Suitable for the tropics - epoxy resin casted Output separated according to VDE 0551 Extra low safety potential PELV (EN 60204), SELV (EN 60950) Safety according to VDE, EN, UL, CSA Adjustment range: - 10.0 - 15.5 VDC Efficiency: - 80% Residual ripple: - < 25mVSS Operating temperature range: - -40°C / +80°C Dimensions (WxHxD): - 55.0 x 75.0 x 110.0 mm Weight: - 0.62 kg Mounting: - On rails acc. to DIN 46277, wall mounting possible
