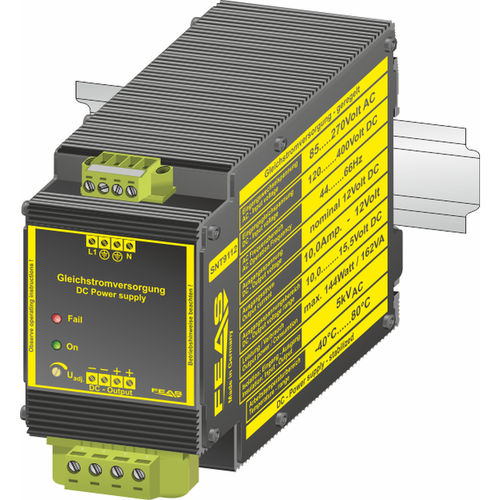

SMPS power supply SNT9112

AC/DCDC/DCsingle-output

The switch mode power supplies of the SNT91 series are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this type can be adjusted. The output current can rise to 140% of rating, therefore this power supply is suitable for loads requiring high starting current. Boost with 140% Operating status shown by LED Parallel connection possible Short circuit proof Output protected against polarity reversal Suitable for the tropics - epoxy resin casted Output separated according to VDE 0551 Extra low safety potential PELV (EN 60204), SELV (EN 60950) Safety according to VDE, EN, UL, CSA Adjustment range: - 10.0 - 15.5 VDC Efficiency: - max. 92% Residual ripple: - < 25 mVrms Operating temperature range: - -40°C / +80°C Dimensions (WxHxD): - 64.0 x 100.0 x 120.0 mm Weight: - 1.60 kg
