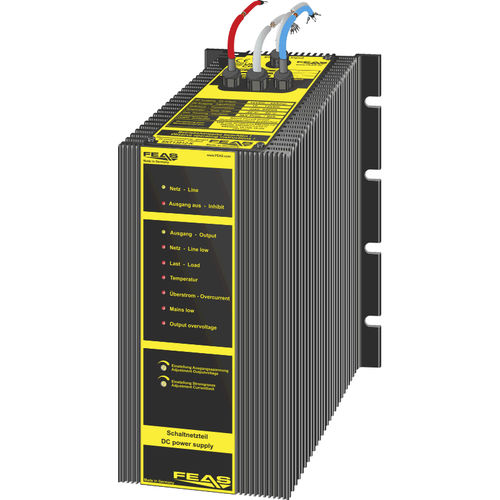

Switching power supply SNT13012-K

AC/DCDC/DCsingle-output

The switch mode power supplies of the SNT130 series are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this type can be adjusted. The output current can rise to 150% of rating, therefore this power supply is suitable for loads requiring high starting current. Version with cable connection Boostfunction: 120% Iout Fuse Mode: safe, permanent shutdown on overload, adjustable Device protection: shutdown on overtemperatur, automatic restart IP65-IP69K* - protective class (*IP69K, if the potentiometer openings are reliably sealed) Standby-Function: turn off the output Relaiy-contacts for remote monitoring Integrated 0-10 V interface for controlling the output voltage (Dimmer) Comprehensive microprocessor-controlled monitoring management with LED display Parallel connection possible Output protected against polarity reversal Short circuit proof Suitable for the tropics - epoxy resin casted vibration proof PFC acc. to IEC/EN 61000-3-2 Output separated according to VDE 0551 Extra low safety potential PELV (EN 60204), SELV (EN 62368) Safety acc. to VDE, EN, UL, CSA Adjustment range: - 10.0 - 15.0 VDC Efficiency: - 95% Residual ripple: - < 100mVrms Operating temperature range: - -40°C / +80°C Dimensions (WxHxD): - 148.0 x 256.0 x 167.5 mm Weight: - 11.0 kg
