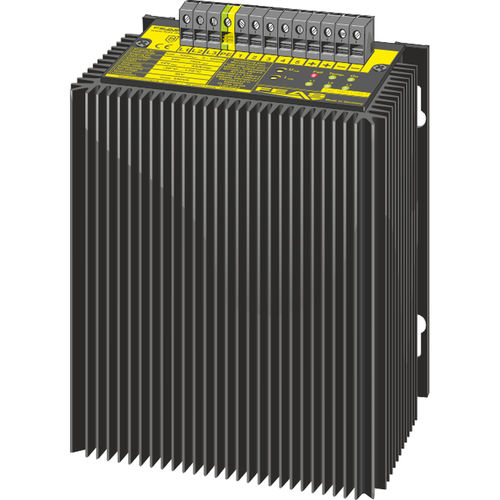

AC/DC power supply SNT12812

single-outputcurrent outputswitching

The switch mode power supplies of the SNT128 series are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this type can be adjusted. The output current can rise to 120% of rating, therefore this power supply is suitable for loads requiring high starting current. Boostfunction: 120% Iout up to 5min Device protection: shutdown on overtemperatur, automatic restart Relaiy-contacts for remote monitoring Comprehensive microprocessor-controlled monitoring management with LED display Runs in 2-phase operation without performance reduction Output separated according to VDE 0551 Extra low safety potential PELV (EN 60204), SELV (EN 60950) PFC acc. to IEC/EN 61000-3-2 Short circuit proof Parallel connection possible Output protected against polarity reversal Suitable for the tropics - epoxy resin casted Safety acc. to VDE, EN, UL, CSA Adjustment range: - 10.0 - 15.5 VDC Efficiency: - 90% Residual ripple: - < 50 mVSS Operating temperature range: - -30°C / +70°C Dimensions (WxHxD): - 171.0 x 224.0 x 103.0 mm Weight: - 7.00 kg
