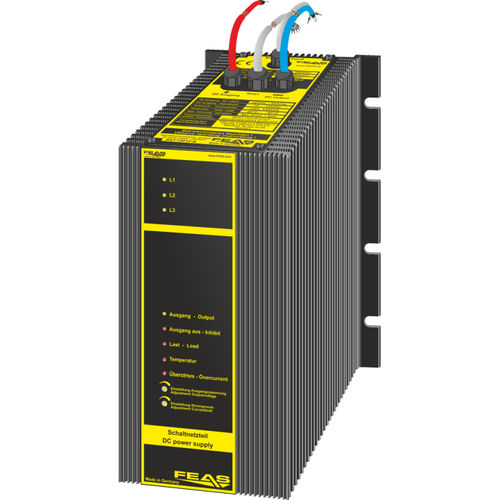

AC/DC power supply SNT15012-K

single-outputcurrent outputadjustable

The 3-phase switch mode power supplies of the SNT150 series are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this type can be adjusted. The output current can rise to 150% of rating, therefore this power supply is suitable for loads requiring high starting current. Boost: max. 150%, 140% Iout up to 1 min, 125% up to 5 min Fuse Mode: safe, permanent shutdown on overload, adjustable Current limitation: adjustable to 0.5 to 1.5 of the nominal current Device protection: shutdown on overtemperatur, automatic restart Standby-Function: turn off the output Integrated 0-10 V interface for controlling the output voltage (Dimmer) Connection via cable IP65-IP69K* - protective class (*IP69K, if the potentiometer openings are reliably sealed) Comprehensive microprocessor-controlled monitoring management with LED displays Parallel connection possible Output protected against polarity reversal Short circuit proof Suitable for the tropics - epoxy resin casted vibration proof PFC acc. to IEC/EN 61000-3-2 Output separated according to VDE 0551 Extra low safety potential PELV (EN 60204), SELV (EN 62368-1) Safety acc. to VDE, EN, UL, CSA Adjustment range: - 10.0 - 15.0 VDC Efficiency: - 92% Residual ripple: - < 50 mVrms Operating temperature range: - -40°C / +80°C Dimensions (WxHxD): - 148.0 x 256.0 x 167.5 mm Weight: - 10.2 kg
