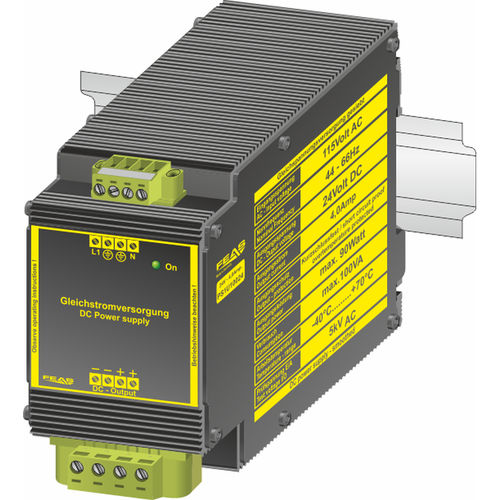

Unregulated power supply PS1U10012

AC/DCsingle-outputcurrent output

The power supplies of the PS1U100 series are powerful and robust devices to power electrical loads, like contactors, magnetic switches, magnetic valves, relays or similar. Power supplies of this type are suitable as well for the most PLC-applications. The uncomplex circuit arrangement guarantees the advantage of a long life span and a high degree of efficiency (>80%). This power supply is optimally suited for loads requiring high starting current. Because of its robust design, it is particularly suitable for being used in rough industrial environment. Furthermore it is quite insensitive to surge voltages. Output separated according to VDE 0551 Smoothed output Conforms to EMC and low voltage directive Extra low safety potential PELV (EN 60204), SELV (EN 60950) Short circuit proof Operating status shown by LED Parallel connection possible Suitable for the tropics - epoxy resin casted Safety acc. to VDE, EN, UL, CSA Efficiency: - 88% Residual ripple: - < 3% Operating temperature range: - -40°C / +70°C Dimensions (WxHxD): - 64.0 x 100.0 x 120.0 mm Weight: - 1.85 kg
