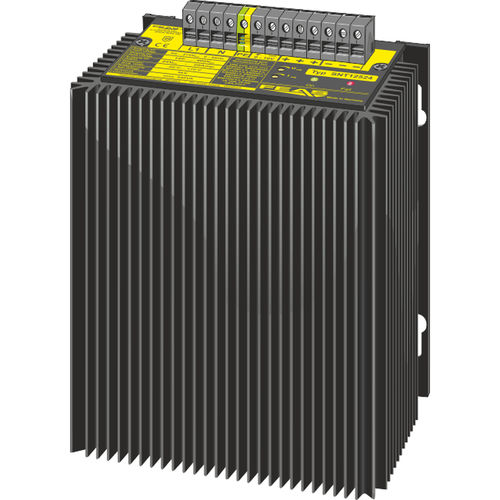

AC/DC power supply SNT12524

adjustableswitchingwith short-circuit protection

The power supply units in the SNT125 series are powerful and robust switching power supply units for supplying sensitive loads in harsh industrial environments. These properties are achieved, among other things, by integrating a modern design with good interference suppression and high functional reliability into a functional and stable housing. The short-circuit-proof DC output voltage of this version is adjustable. The output current can briefly rise to 120% of the nominal value, which is why this power supply unit is ideal for loads that require a high starting current. Boost function: 120% Iout up to 5min Device protection: automatic switch-off in the event of overtemperature and restart Integrated 0-10 volt interface for controlling the output voltage (dimmer) Harmonic limitation in accordance with IEC/EN 61000-3-2 Potential-free output in accordance with VDE 0551 Overload and no-load protection Protective extra-low voltage PELV (EN 60204), SELV (EN 62368) Short-circuit proof LED operating indicator Can be connected in parallel Reverse polarity protection at the output Tropicalised due to cast resin encapsulation Safety according to VDE, EN, UL CSA Setting range: 22.5 - 30.0 VDC Efficiency: 93% Residual ripple: <50mVrms Operating temperature: -30°C / +70°C Dimensions (WxHxD): 171.0 x 224.0 x 103.0 mm Weight: 7.3 kg
