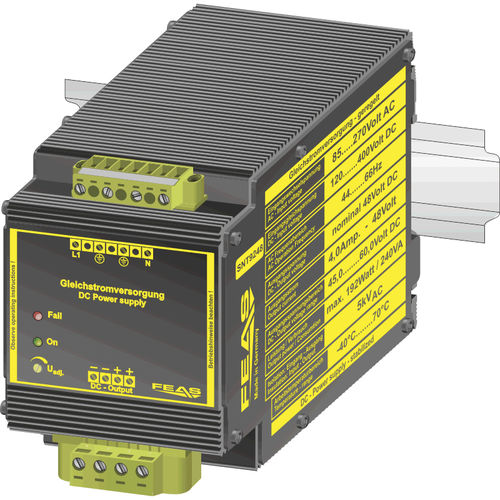

AC/DC power supply SNT9248
adjustableswitchingwith short-circuit protection

AC/DC power supply - SNT9248 - FEAS GmbH - adjustable / switching / with short-circuit protection
AC/DC power supply - SNT9248 - FEAS GmbH - adjustable / switching / with short-circuit protection
Add to favorites
Compare this product


Characteristics

Type
AC/DC
Output
adjustable
Technology
switching
Protection
with short-circuit protection, with overload protection
Mounting
DIN rail
Certifications
CE
Applications
for industrial applications, for remote control
Other characteristics
robust
Input voltage

Max.: 270 V

Min.: 85 V

Output voltage

48 V

Max.: 60 V

Min.: 45 V

Current

4 A

Power

192 W

Output frequency

Max.: 66 Hz

Min.: 0 Hz

Description

The power supply units in the SNT92 series are powerful and robust switching power supply units for supplying sensitive loads in harsh industrial environments. These properties are achieved, among other things, by integrating a modern design with good spark suppression and high functional reliability into a functional and stable housing. The short-circuit-proof DC output voltage of this version is adjustable. The output current can briefly rise to 120% of the nominal value, which is why this power supply unit is ideally suited for loads that require a high starting current. Harmonic limitation in accordance with IEC/EN 61000-3-2 Switching regulator with low residual ripple Adjustable output voltage Boost function: 120% LED operating display Can be connected in parallel Short-circuit proof Reverse polarity protection at the output Overload and no-load protection Suitable for tropicalisation due to cast resin encapsulation Output potential-free according to VDE 0551 Protective extra-low voltage PELV (EN 60204), SELV (EN 60950) Safety according to VDE, EN, UL CSA Setting range: 45.0 - 60.0 VDC Efficiency: 88% Residual ripple: < 50mVrms Operating temperature: -40°C / +70°C Dimensions (WxHxD): 79.0 x 100.0 x 120.0 mm Weight: 2.0 kg
