XPPC continues the XPOS's DNA and keep it slim design.
Using Intel Celeron J6412 Processor & Support High-speed PCIe M.2 SSD.
Flexible mounting option: Desktop, Wall-mounted, or Panel-mounted.

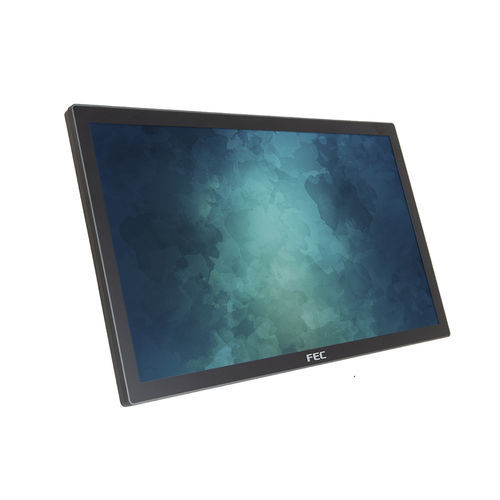

XPPC PP-9732W is an ultra slim All-in-One panel PC.
Platform: Celeron J6412
Processor: J6412
System Storage: 1 x M.2 M Key (PCIe)
Digital Information Signage
FEC 22 inch Panel PC can be used in different way, with universal VESA wall mount design, they can be easily mounted on any flat surface or connect with FEC Stand to use as desktop type,
Large Enterprise Environment
Large screen All in One Panel PC is perfected for digital signage, product display, industrial control system or apply with self-ordering system.
Memory
4GB Standard, Max 128 GB (1 x So-DIMM DDR4)
Storage
1 x M.2 M Key (PCIe / SATA)
Connection
1 x M.2 E Key 802.11ac + BT 4 (Optional)
Speaker
2 x 2W Internal Speaker
Touch
True-Flat PCAP
Brightness
250 nits
Power
20V / 90W or 20V / 130W External Adapter
TPM
TPM2.0: Intel PTT
Certification
FCC / CE Class B
Appearance
Aluminum Die-Casting + Plastic
Galaxy Grey
Temperature
Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
Storage: -20˚C ~ 60˚C (-4˚F ~ 140˚F)
Dimensions (W x H x D)
Product: 512.30 x 308.91 x 38.8 mm
Carton: 662 x 210 x 440 mm
Weight
Net: 5.5Kg
Gross: 7.0 Kg
Port
1 x RJ11 Cash Drawer (12/24V)
1 x SMART DD (Reserved for FEC 2nd Display)
1 x Giga LAN
1 x 20V DC-In
1 x SMART IO (Reserved for optional addition IO interface)
