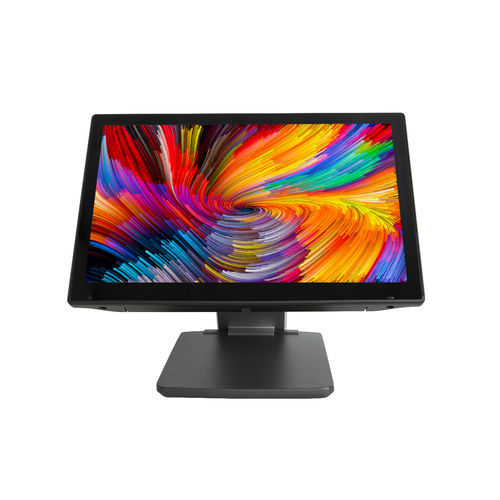

The FEC new generation product – Xmonitor, which redesigned with XPPC, provides three different installation methods. Respectively is the integrated type mounted on the monitor, the arm type fixed on the stand, and the pole type with an independent extending FEC pole.
Touch
Non-Touch
True-Flat PCAP
Brightness
300 nits
MTBF
70K Hours
Speaker
4ohm 2W (Available for AD board Version)
Power
AD board Version:
12V DC (Power from VGA, USB DP)
12V DC-in
SMART DD Version:
12V DC (Power from SMART DD)
Certification
FCC / CE Class B
Appearance
Aluminum Die-casting + Plastic
Galaxy Grey
Temperature
Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
Storage: -20˚C ~ 60˚C (-4˚F ~ 140˚F)
Dimensions (W x H x D)
Product: 368 x 272.5 x 315 mm
Carton: 492 x 168 x 488 mm
Weight
Display Only (Net): 3 Kg
Display with Stand (Net): 3.9 Kg
Display with Stand (Gross): 5.6 Kg
Port
AD board Version:
1 x Video Port
1 x VGA (12V Power)
1 x USB DP
1 x USB 2.0 Type B
1 x DC-in 12V
1 x Line-in
Smart DD Version:
1 x Smart DD in
1 x Smart DD out
Optional
Compatible with XPOS Add-on device(Supports Device on Right Side)
2 in 1 Sensor (Ambient Light, Proximity)
2MP Front Camera
2 x USB 2.0 Type A
