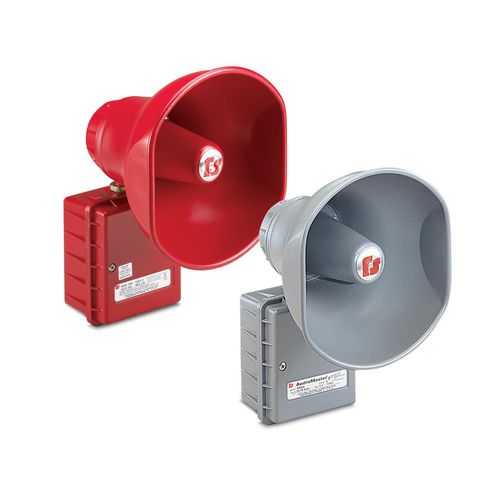

Wall-mounted loudspeaker AM300

ruggedfire-resistant

15 watt (AM300) or 30 watt (AM302) Transformer coupled 25 or 70 Vrms Re-entrant horn design Wall mount Indoor/outdoor use Type 3R, IP54 enclosure CSFM Approved for Model AM300 only UL Fire Listed Features Models AM300 and AM302 are rugged, transformer coupled, re-entrant speakers for use in public address or paging applications. These 15 and 30 watt speakers feature a durable speaker cone and projector constructed of spun aluminum. The speaker wiring connections are enclosed in a dust- and moisture-proof, die-cast aluminum compartment. All external surfaces are sealed with a red or gray powder coat paint. The bottom of the the units contain two 1/2-inch conduit openings to accommodate inbound and outbound audio wiring. The unique shape of projector provides a 60° sound dispersion. The projector is held in position with a Teflon coated lock ring that can be rotated 180° in order to obtain the desired sound distribution. These speakers are UL Listed for “Fire Protective Signaling Use”. An in-line capacitor (included) provides the isolation necessary for use in supervised systems. These can be used with supervised alarm notification systems or AudioMaster® CTS series amplifiers and the Audio Router to complete an industrial grade public address system.
