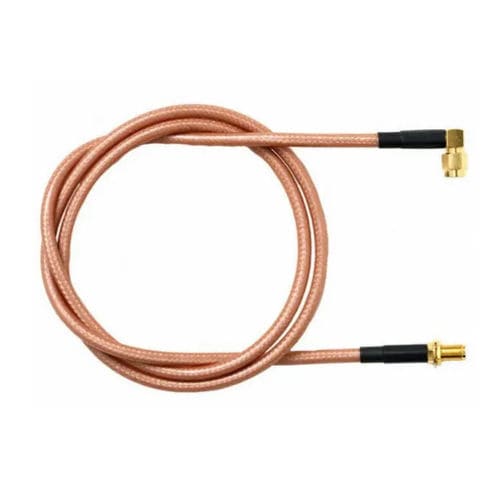

Coaxial cable assembly RG142

solid

Construction : Inner conductor Silver plated copper clad steel(SCCS) Φ0.94 mm Dielectric Solid PTFE Φ2.95 ± 0.05mm Outer conductor(shield 1) Silver plated copper 112 x 0.13 mm Shield coverage 96% Outer conductor(shield 2) Silver plated copper 112 x 0.13 mm Shield coverage 96% Outer sheath FEP Φ4.95 mm Electrical & Mechanical Characteristics Impedance 50±3 Ohm Nominal capacitance 95.4 pF/m Velocity of propagation 70% Insulation resistance >2000 Mohm.Km Inner conductor resistance 63.3 Ohm/Km Outer conductor resistance 7.5 Ohm/Km Test/Operatig Voltage(max) 5.0 KV/1.9 KV Operating temperature range -55... Inner conductor - Silver plated copper clad steel(SCCS) - Φ0.94 mm Dielectric - Solid PTFE - Φ2.95 ± 0.05mm Outer conductor(shield 1) - Silver plated copper - 112 x 0.13 mm Shield coverage - - 96% Outer conductor(shield 2) - Silver plated copper - 112 x 0.13 mm Shield coverage - - 96% Outer sheath - FEP - Φ4.95 mm Electrical & Mechanical Characteristics Impedance - 50±3 Ohm Nominal capacitance - 95.4 pF/m Velocity of propagation - 70% Insulation resistance - >2000 Mohm.Km Inner conductor resistance - 63.3 Ohm/Km Outer conductor resistance - 7.5 Ohm/Km Test/Operatig Voltage(max) - 5.0 KV/1.9 KV Operating temperature range - -55 °C - +200 °C Copper Weight - 47.0 Kg/Km Cable weight (approx.) - 80.0 Kg/Km fectiveness - 100-900 MHz
