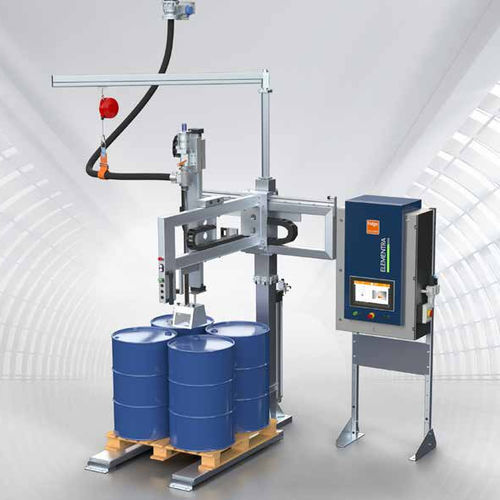

Pallet drum filling station ELEMENTRA® 17
semi-automaticIBCfor liquids

pallet drum filling station
pallet drum filling station
pallet drum filling station
pallet drum filling station
Add to favorites
Compare this product


Characteristics

Operational mode
semi-automatic
Container type
IBC, pallet drum
Product applications
for liquids
Domain
industrial
Type
vertical
Number of heads
with 1 head
Other characteristics
flexible
Throughput

Max.: 60 p/h

Min.: 50 p/h

Capacity

Max.: 2,000 kg
(4,409.25 lb)

Min.: 10 kg
(22.05 lb)

Machine weight

500 kg
(1,102.31 lb)

Description

With the pre-configured pallet filling station ELEMENTRA® 17 that has been designed with your requirements in mind, you are able to meet all your demands in a fast and cost-effective manner. The highly flexible "plug and fill" filling station is optimally suited if you wish to operate the equipment only from the front. Optional equipment accessories provide automatic or actuated drip collection, overflow signal or gas exhaust (also directly at the filling opening), inerting, a complementary product hose system and drain funnel. Your benefits – Pallet Filler ELEMENTRA® 17 • Very cost-effective solution as the whole control and operating modules are directly at the filling station • Very flexible filling station, even suitable for filling IBC with a height of up to 1350 mm • Appropriate solution if handling is possible only from the front • Short delivery time due to pre-configured solutions • Sturdy column construction • Quick installation • Simple operation • Below-surface filling with lance raise by weight, below-bunghole filling or above-surface filling • 255 filling parameters for different products can be generated • Control of customer’s product pump or pilot valve is included • Fully electro-mechanical scale base with stainless steel load cells • Up to 3 drive units can be controlled • Also available with flip open pit scale • Appropriate product hose with dedicated suspension available • Also available in stainless steel design • Also available as mobile version
