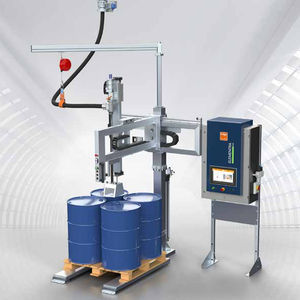

Robotic filling machine INTEGRA® 72

fully-automaticpallet drumIBC

With the pallet filling robot INTEGRA® 72 you opt for a high degree of operating convenience and optimisation of your work organisation. The gantry-type pallet filler carries out the filling operation fully automatically and offers you the highest product, environmental and personal protection. The pallets are moved with empty containers onto the scale base by means of carrying chain conveyors. The filling opening positions are taught by the operator or are located by means of a template. Then the containers are one after the other automatically opened, filled and closed and, if necessary, also sealed. Your benefits - pallet filling robot INTEGRA® 72 • Sturdy gantry-type construction • Product hose and filling unit are only little moved, thus very suitable for large nominal widths • Filling of several layers and incomplete pallets possible • Reliable avoiding of double fillings • Tare check, gross total check, flow rate control • Fill time monitoring Below-surface filling with lance raise by weight • Touch panel as operating interface with integrated weigh scale terminal and monitoring • Connection to supervisory systems possible • ATEX compliant
