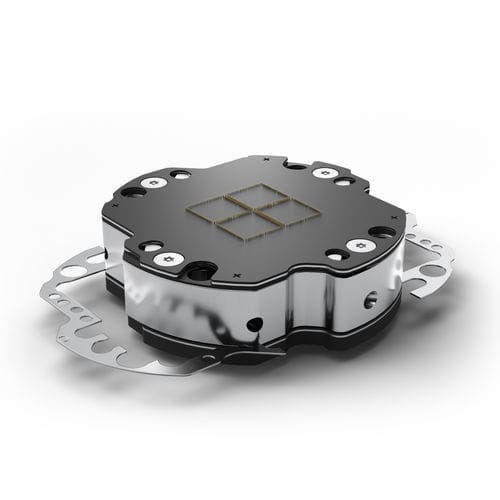

Probe card VIPROBE® II

With multiple lifetime extension options and various security features for the wafer, the ViProbe®II brings all the advantages of the ViProbe® to the next level Min. pitch of the DUT - 50 µm Min. diameter of the plunger - 1,6 mil Max. contact surface - 105 mm x 105 mm Temperature - -55°C...+180°C Current carrying capability at RT - 800 mA Contact force at rec. OD - 2,4 cN - 10,8 cN Material compatibilities - Material compatibility 1 - Gold Material compatibility 2 - Palladium Material compatibility 3 - Diverse Material compatibility 4 - Solder ball Material compatibility 5 - Aluminium Material compatibility 6 - Copper
