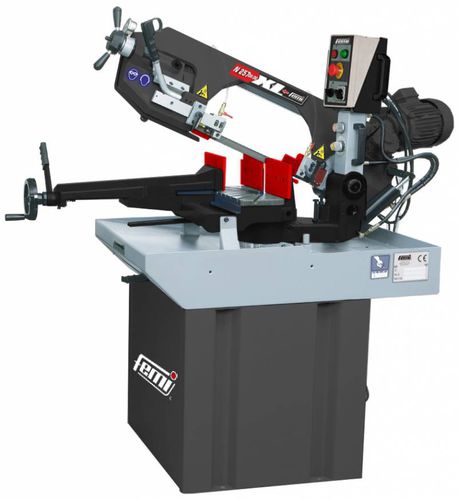

Band saw N257 DADG

horizontalfor metalsswivel

Arm downfeed : Automatic with hydraulic control system Blade development (mm) : 2480x27x0,9 Motor power (watt) : 750/1100 Electrical supply (Volt-Hz) : 400 - 50 Weight (Kg) : 235 Blade speed (mt/min) : 45/90 2 speeds Toothing Z/1" : 6/10 Packaging (mm) : 1385x580x890 Lubrication : Sì • Powerful three-phase 2 speed induction motor, oil lubricated motor gearbox. • Arm, vice and swivel group in cast iron. • Steel sliding blade guide with ball bearings. • Side sliding vice with quick clamping device. • Lubrication pump with aluminium body. • Large knob for an easy blade tension. • Pressure gauge indicating blade tension level (600-1000 kg/cm2) • Column in assembly kit. • Tank for lubrication oil. • Lubricartion pump. • Bar stop rod for mass-produced cuts. • Service keys. • Blade cleaning brush. • Hydraulic cylinder with flow regulation.
